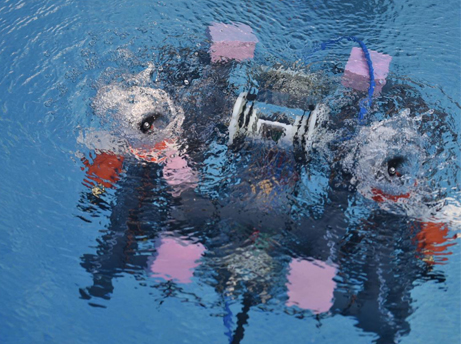

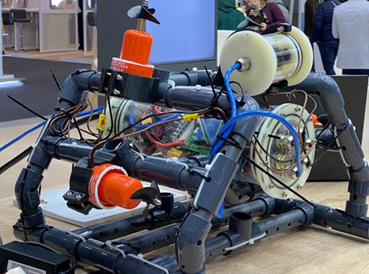

ROV Classroom Kit


Open-Source ROV Kit
CerebroX has developed an open-source ROV starter kit for advanced middle and high school learners participating in the MATE ROV competition. It is designed to teach through hands-on teamwork; students are given step-by-step instructions through a detailed manual that walks them through every step of assembling the electronic, mechanical, and structural components of their first ROV. Two Possible Configurations

The instructions offer two final designs that they can decide from, opening them up to team discussions about advantages and disadvantages of each design. After completing their design and testing it, they are more than ready to begin putting their own special touches on their design by modifying, replacing, or adding components or features.

Included in the ROV Starter Kit:
• PDF Instructions to assemble frame into two possible designs
• All required Electrical components
• All required Structural components
• All required Mechanical components

General Specifications:
• Power Requirements – 12 Volts DC – 30 Amps
• Communication Protocols – RS-485
• Depth Rating – 7 Meters

Vehicle Dimensions (Reconfigurable)
• Length: 54CM
• Width: 47CM
• Height: 36CM

Propulsion
• Thruster: Sealed DC Motor with 52D Nylon Propeller

Control Panel
• Controlling Joystick – Xbox 360 Joystick
• Camera Signal – Easycap

Camera:
• 1 Lowlight Analogue Camera, 700TVL Resolution, Wide-angle field of view, NTSC Video Output

Tether:
• 20 Meter tether


Please contact us directly to request a quote.
