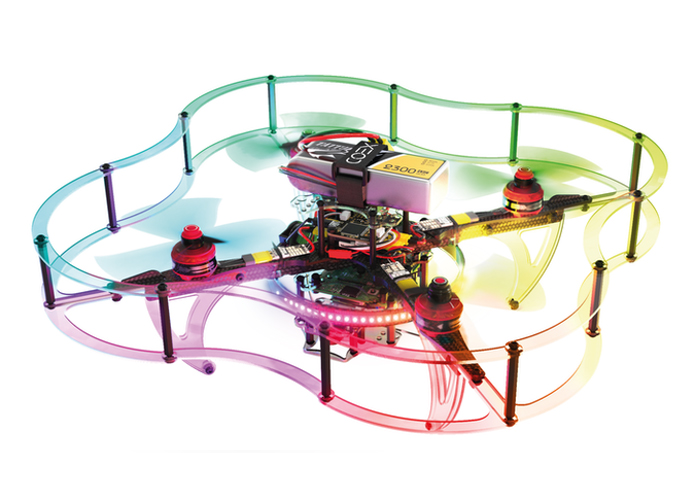

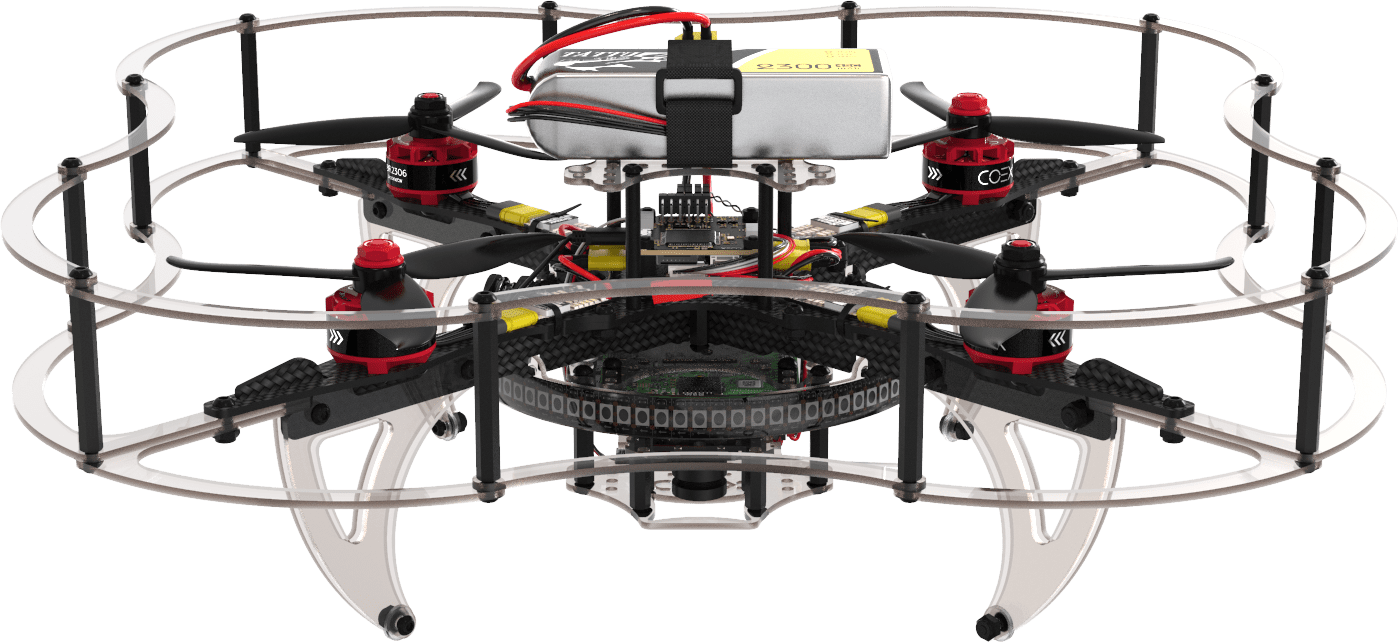

COEX Clover Drone

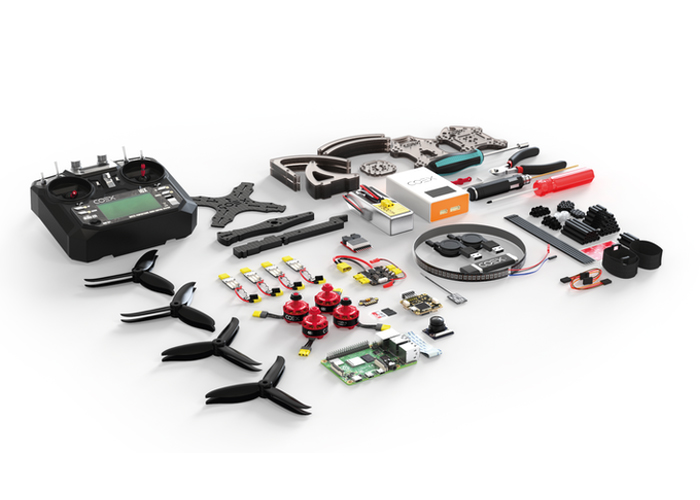

Learn the complete inner workings of a drone, from physics to programming and telemetry,
with this quadcopter kit. The set includes a PX4 flight controller and a Raspberry Pi 4
controlling onboard computer, which can be used to connect to the drone over
Wi-Fi.
It's also Python based, meaning you can learn to use the drone while building
industry-demanded coding skills. There are also ready-made codes available to help get
you started.
The platform utilizes the ROS framework, which allows the user program to communicate
with the Clover services
Positioning systems:
● Optical flow
● ArUlco markers
● GPS
Highlights:
- Indoor navigation running on Raspberry Pi 4
- Carbon Frame for quick assembly, repair, and long-lasting use
- Powerful Motors: 2306 brushless motors keep the flight stable and
increase payload capacity
- Programable LED – highlight your drone or swarm with a programmable 144
LED/m strip
- Manuals – detailed instructions for assembly, configuration and
programming
- Github – firmware, updates, and ready-made modules in the public domain
immediately available
- Gitbook – Open educational platform for studying and developing
autonomous UAVs
- ROS platform – the Clover platform includes a Raspberry Pi image with a
pre-set envorinoment for the development of autonomous flights in Gazebo

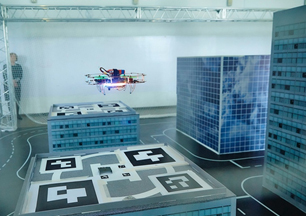

- Recognition of ArUco markers – use computer vision to direct the flight
of your drone
